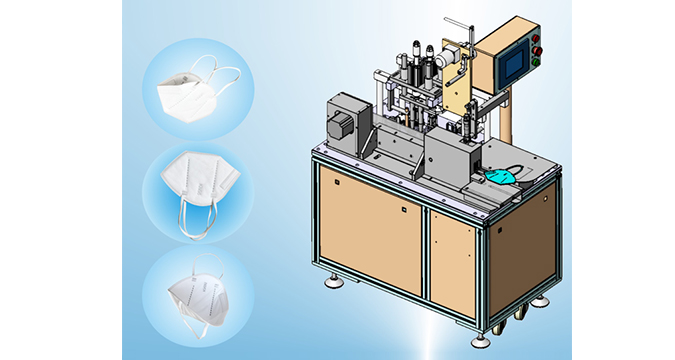

This equipment is specially designed for spot welding of KN95 mask ear straps.The purpose is to firmly weld the ear straps to the KN95 mask pieces.The equipment can be operated by only one staff member.It is small and beautiful, easy to move, and has high production efficiency and simple operation. , Stable quality and other characteristics. The equipment uses 15k2000w ultrasonic wave, which makes the welding point more firm. Ultrasonic welding head is made of high-speed steel, with long service life, long-lasting and durable. This machine adopts PLC, touch screen control, the main conveyor belt adopts stepper motor transmission, precise transmission, stable control, adjustable speed

Technical characteristics / Technical characteristics

Technical parameters / Technical parameters

1. Equipment size: L=1000mm*W=710mm*H=1420mm

2. Appearance color: gray, according to this standard when no special instructions

3. Equipment weight: ≤200kg, ground bearing ≤200KG/m²

4. Working power: equipment 220VAC±5%, 50HZ, rated power about 2.5KW

5. Compressed air: 0.6~0.8MPa, the flow rate is about 400L/min

6. Production efficiency: 30~50pcs/min (unilateral)

7. Use environment: temperature 10~35℃, humidity 5-35%HR, no flammable, corrosive gas
